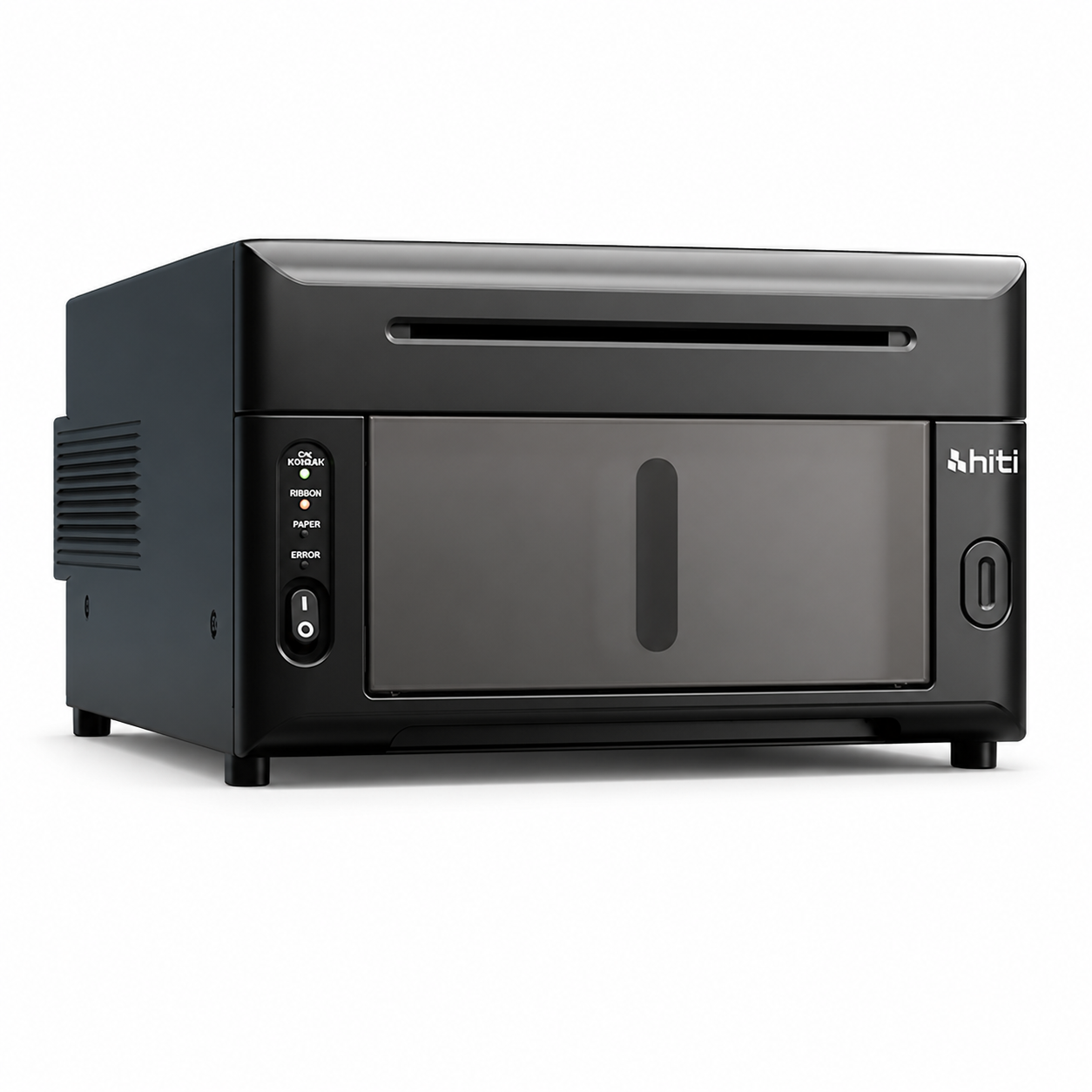

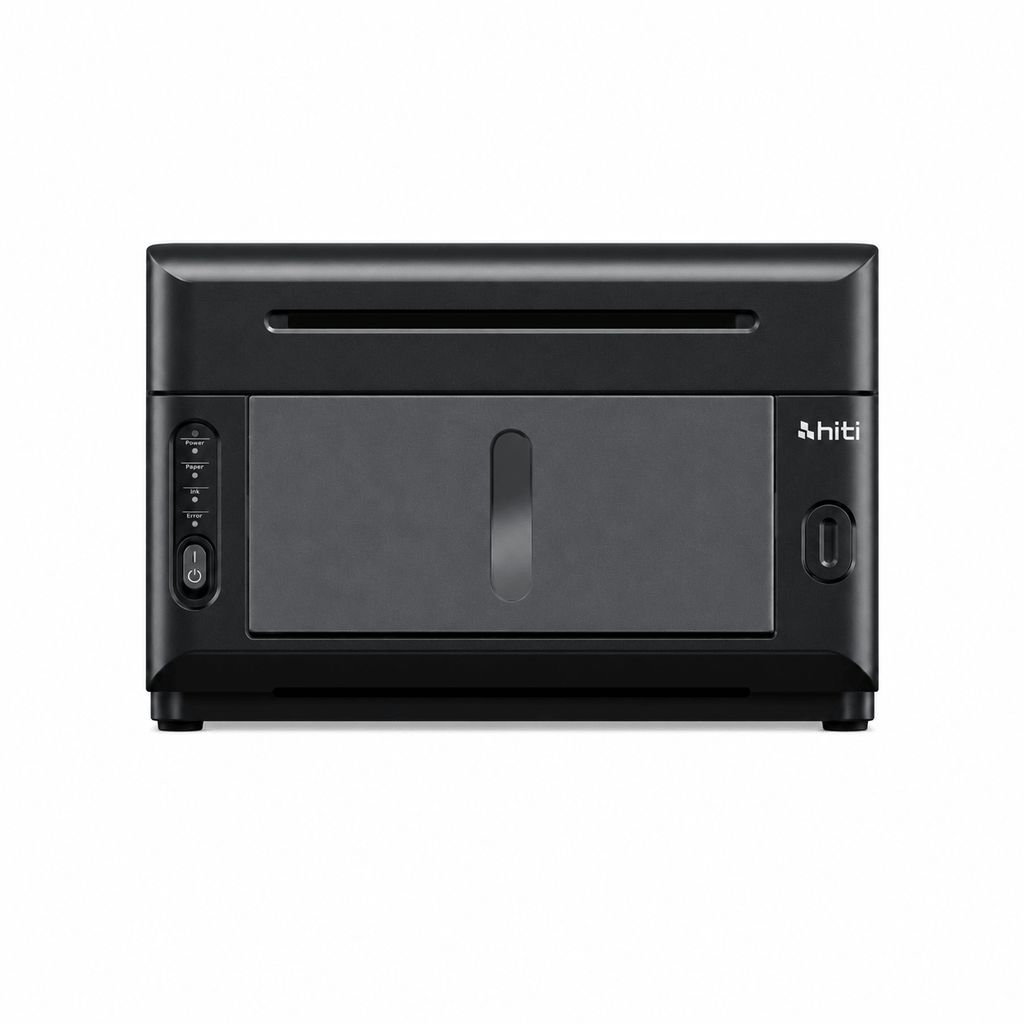

HiTi P630A Photo Printer – Compact, High-Speed Printer for Photo Booths & Events

The HiTi P630A is a compact, high-throughput dye-sublimation photo printer built for photo booths, on-site event printing, retail kiosks, and attraction venues that need lab-quality prints on demand. This page covers the full technical profile of the P630A — specifications, media compatibility, connectivity, and setup details.

Overview

The P630A is built for sustained, high-volume printing. A high-performance system-on-chip with large built-in RAM processes image data quickly, keeping output stable and image quality consistent across long print runs — a meaningful difference from entry-level dye-sub printers when a booth or kiosk is running back-to-back jobs for hours at a stretch.

At 11 x 6.7 x 15.2 inches (280 x 170 x 385 mm) and 23 lbs, the P630A has a slim footprint that fits inside photo booths, kiosk enclosures, and tight workstations without dominating the space the way larger commercial printers do.

Print Speed

• 4x6": approximately 8.9 seconds per print (6x8 two-up mode)
• 5x7": approximately 15.6 seconds per print
• 6x8": approximately 16.9 seconds per print
• 400+ prints per hour in standard operation

Supported Print Sizes

The P630A covers a wide range of event and retail formats from one printer:

• 2x6" photo strips
• 4x6"
• 5x7"
• 6x6" square
• 6x8" enlargements

Additional smaller and perforated formats are available depending on media selection.

Media Capacity

• 4x6": up to 430 prints per roll (2 rolls per carton)
• 5x7": approximately 215 prints per roll (2 rolls per carton)
• 6x8": approximately 215 prints per roll (2 rolls per carton)

Technical Specifications

Printing Method

Dye Sublimation (D2T2), continuous tone

Resolution

300 x 300 dpi

Processing

High-performance SoC with large built-in RAM

Interface

USB 2.0

Operating Systems

Windows 7 or later, macOS 10.6 or later

Optional Accessory

Output paper tray for kiosk/high-volume setups

Dimensions (W x H x D)

11" x 6.7" x 15.2" (280 x 170 x 385 mm)

Weight

23 lbs (10.5 kg)

Connectivity and Software

The P630A connects via USB 2.0 to Windows or macOS computers for a straightforward, reliable wired workflow. For kiosk and high-volume deployments, an optional output paper tray is available to manage print output at higher throughput.

Media and Ribbon Compatibility

The P630A uses genuine HiTi print media and ribbon kits sized for 2x6", 4x6", 5x7", 6x6", and 6x8" output. Using genuine HiTi consumables ensures consistent color output and reliable printer operation across long runs.

P630A vs. P525L

Both are current-generation HiTi dye-sub printers well suited to event and photo booth use. The P630A is built around sustained, high-volume throughput — its SoC and RAM architecture are designed to keep output stable during long, back-to-back print runs, making it a strong fit for busy kiosks and attractions. The P525L uses RFID media detection and offers optional Wi-Fi connectivity, which suits operators who prioritize wireless setup flexibility. For continuous high-volume printing, the P630A is the stronger fit; for wireless flexibility and quick media changes, the P525L is worth considering.

Frequently Asked Questions

How fast does the HiTi P630A print?
The P630A prints a 4x6" photo in about 8.9 seconds and produces more than 400 prints per hour, with 5x7" prints taking approximately 15.6 seconds and 6x8" prints approximately 16.9 seconds.

Does the P630A support Wi-Fi?
The P630A connects via USB 2.0 to Windows or macOS computers. Wireless connectivity is not standard on this model.

What print sizes can the P630A produce?
The P630A supports 2x6" strips, 4x6", 5x7", 6x6" square, and 6x8" enlargements, with additional smaller and perforated formats available depending on media.

Is the P630A suitable for high-volume kiosk use?
Yes. Its system-on-chip and built-in RAM are designed to keep print quality and output speed stable during long, continuous runs, and an optional output paper tray is available for kiosk configurations.

How much media does one roll hold?
Up to 430 prints per roll at 4x6", and approximately 215 prints per roll at 5x7" and 6x8", with two rolls per carton.

What warranty does the P630A come with?
The HiTi P630A includes a 3-Year HiTi Manufacturer Warranty.
