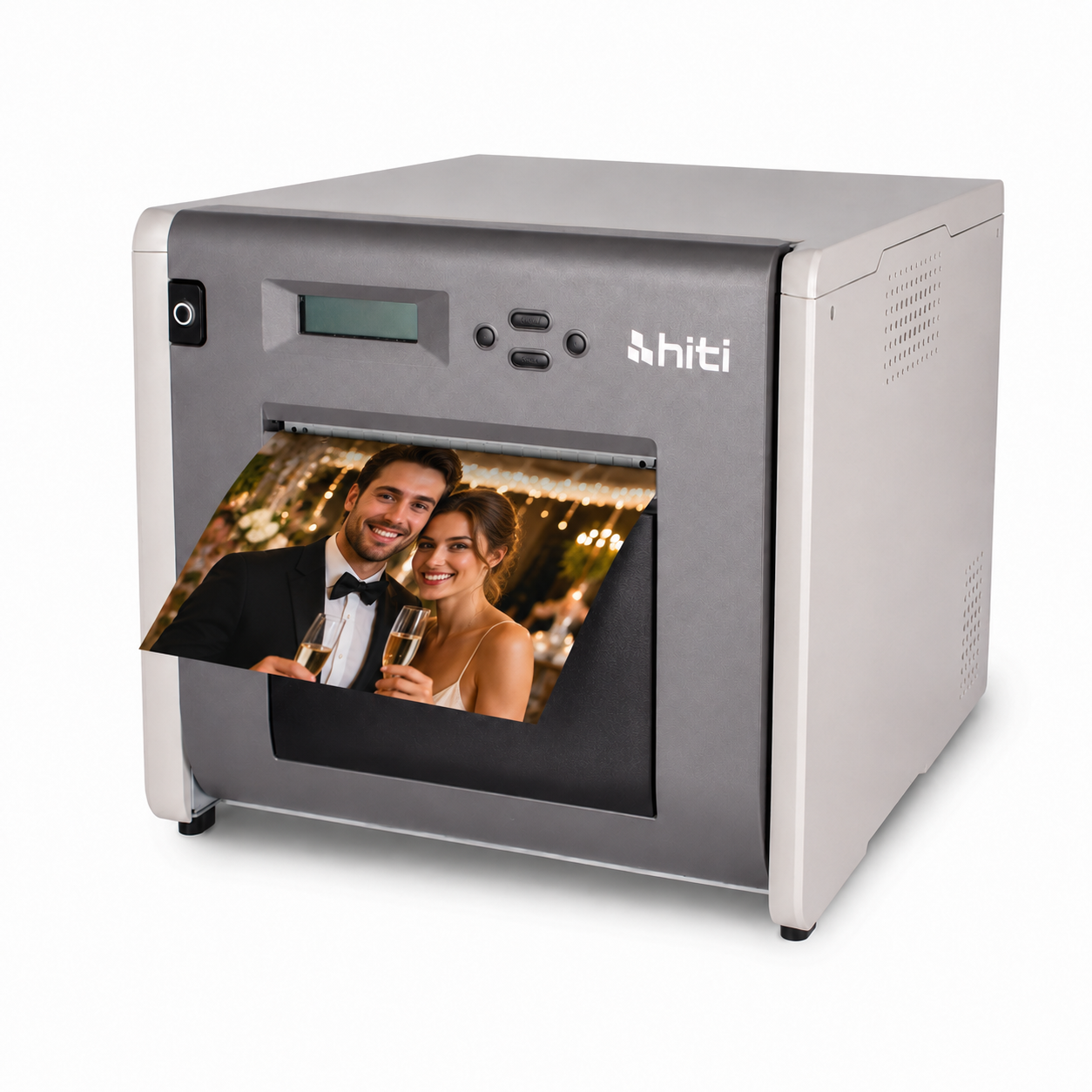

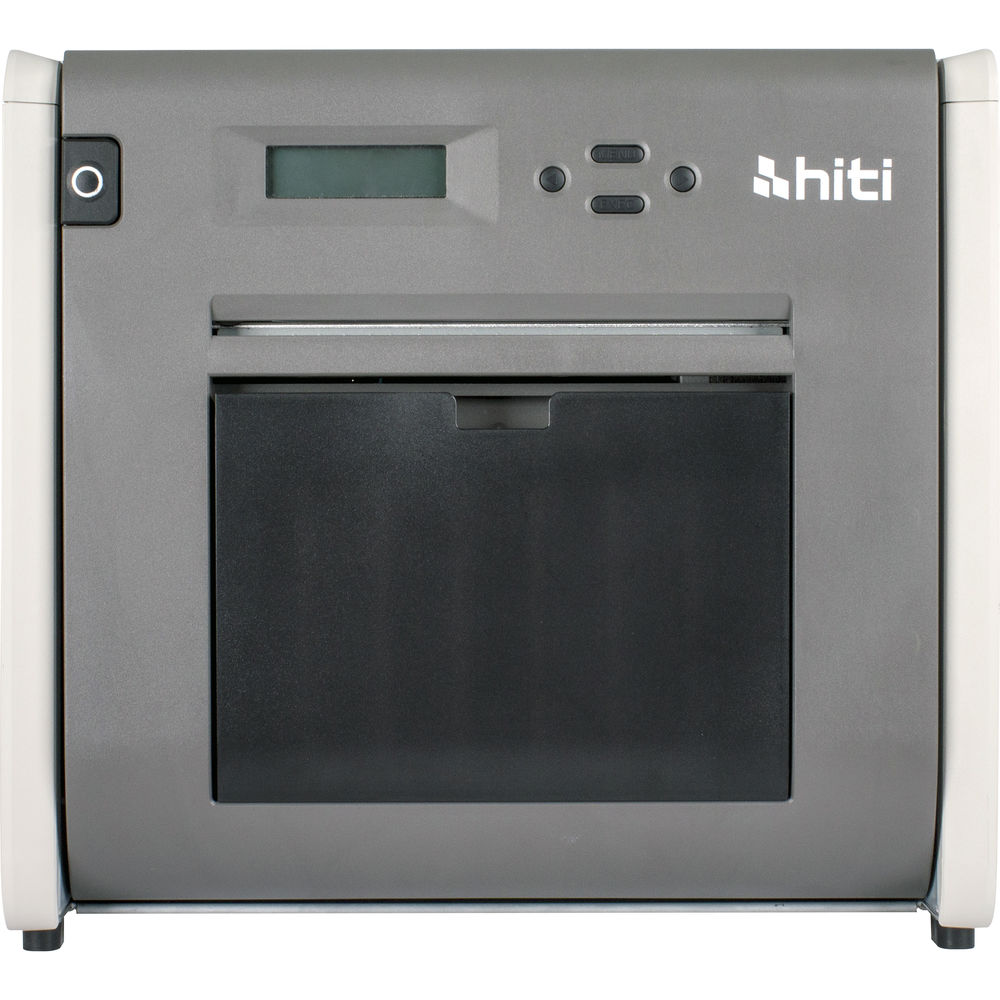

HiTi P525L Photo Booth Printer — Dye-Sub Printer for Photo Booths & Events

Quick Specs at a Glance

Overview

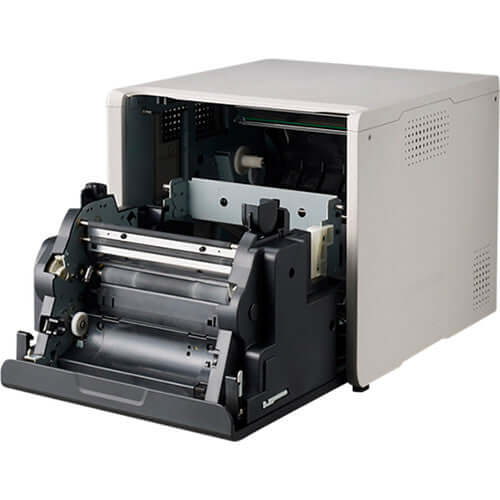

The P525L uses HiTi's D2T2 (Dye Diffusion Thermal Transfer) print engine to produce continuous-tone, 300 x 300 dpi prints with a glossy or matte finish from the same media roll. It's a front-loading, roll-fed design, which means the printer can be reloaded without needing clearance behind the unit — a practical detail for tight photo booth enclosures or table setups.

The P525L was also the first HiTi printer to use RFID-tagged media. Each roll's RFID chip is read automatically by the printer, so the unit identifies media type and size without a separate media key or manual configuration step.

Print Speed

• 4x6": approximately 12.8 seconds per print
• 5x7": approximately 18.5 seconds per print
• 6x8": approximately 20.5 seconds per print

Supported Print Sizes

The P525L's media handling supports a wider range of output formats than its core 4x6/5x7/6x8 sizes suggest. Depending on media roll and layout selection, the printer supports:

• 4x6" (with 2x6" two-up strip cutting)
• 5x7"
• 6x8" (with 3x8" two-up strip cutting)
• 3x4", 3x5", 3x6"
• 5x5", 5x6", 6x6"
• 2x3", 1.33x6", 1.33x3"

This flexibility makes the P525L equally suited to standard event prints, classic photo booth strips, and specialty or square-format layouts, without changing printers between formats.

Media Capacity

• 4x6": 500 prints per roll (2 rolls per carton)
• 5x7": 290 prints per roll (2 rolls per carton)
• 6x8": 250 prints per roll (2 rolls per carton)

Technical Specifications

Connectivity and Software

The P525L connects via USB 2.0 for direct computer printing, or via an optional Wi-Fi dongle for wireless printing from a computer or the HiTi Prinbiz mobile app. Standard driver support covers Windows and macOS; Android and iOS devices print through compatible photo booth software or the Prinbiz app.

Media and Ribbon Compatibility

The P525L uses genuine HiTi RFID media rolls, available in 4x6", 5x7", and 6x8" sizes in glossy or matte finish. Because the printer reads the media's RFID chip automatically, using genuine HiTi rolls is required for correct printer operation, not just print quality.

P525L vs. P520L

The P525L and P520L share the same physical media formats and print sizes. The P525L is the current production model, with updated firmware and RFID media handling; the P520L is the earlier generation. For new purchases, HiTi and its authorized dealers recommend the P525L.

Official HiTi Resources

Every specification on this page is sourced directly from HiTi's own documentation. For the complete technical reference, setup instructions, and maintenance guidance, see the manufacturer's official files below.

Frequently Asked Questions

What is the difference between the HiTi P525L and older HiTi models?

The P525L introduced RFID media detection, meaning the printer automatically identifies paper type and size from the roll's embedded chip rather than requiring a manual media key change.

Can the P525L print sizes other than 4x6, 5x7, and 6x8?

Yes. Depending on the media and software configuration, the P525L supports additional formats including 3x4", 3x5", 3x6", 5x5", 5x6", 6x6", and strip formats like 1.33x6" and 2x3".

Does the P525L require special media, or can I use any dye-sub paper?

The P525L requires genuine HiTi RFID-tagged media. The printer reads the RFID chip on each roll to identify paper type, so non-RFID or third-party media is not compatible.

What's the printer's rated operating environment?

HiTi specifies 50-95°F (10-35°C) with 20-90% non-condensing humidity for reliable operation.

Is Wi-Fi built in, or does it require an add-on?

Wi-Fi is not built in. The P525L connects via USB 2.0 by default; wireless printing requires HiTi's optional plug-and-play Wi-Fi dongle.
